Economical School Chairs for Budget-Conscious Schools | IKA
Product Description

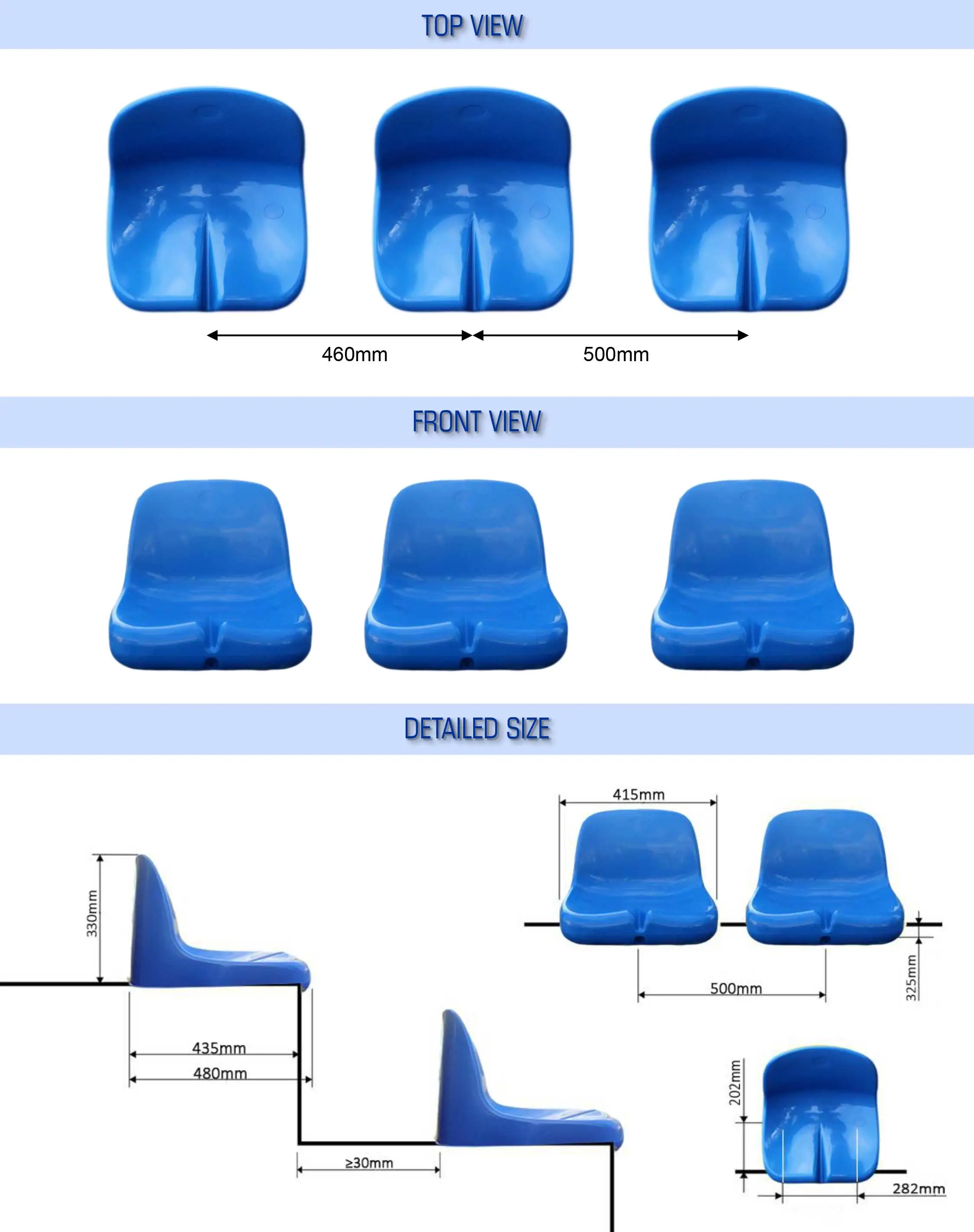

Product Name | Stadium Seating |
| Size | W435 * D480 * H330 mm |
Material | PP |
Color | Red , blue , yellow , grey and customized |
Features | Anti - aging , Anti - UV , Fire proof |
| Application | Stadium , Arena , Sport field |
| Processing Technic | Injection |
| Warranty | 2 Years ( Use life : 10 years ) |
| Certificate | SGS , ISO 4892 - 2 , BS 5852 |
IKA Bucket Seat Design Features
The IKA seat is an outdoor-ready bucket seat made by nitrogen-assisted gas injection moulding, developed for professional venues that need FIFA-compliant seating with practical drainage.
| Design element | Specification |
|---|---|
| Material and process | High-strength polypropylene (PP) with nitrogen-assisted gas injection moulding |
| Compliance | Meets FIFA guidelines and requirements for professional venues |
| Drainage | Unique groove design drains water quickly and prevents pooling on the seat surface |
| Maintenance | Sealed surface resists dust build-up and simplifies cleaning |
| Logistics | Special bucket design enables nesting to cut transport volume |
| Colour and branding | Colour matching and logo customisation available |
Installation Methods
The IKA bucket seat is built for professional venues: it meets FIFA guidelines for professional venues and uses a grooved shell that drains rainwater instead of letting it pool on the seat.
| Mounting method | How the seat is installed | Requirement / benefit |
|---|---|---|
| Flat mounting | Seats are flat-fixed to the front edge of the step using custom brackets | Step height must be ≤ 350 mm, otherwise an over-high seat surface causes fatigue in prolonged sitting. Cost-saving, firm and stable for standalone seats |
| Wall mounting | Seats are fixed to the rear of the step with foot frames and brackets | Requires a step height of 300–550 mm; easy to clean |
| Vertical mounting | Seats are fixed to the rear of the step; the bracket height is fixed | Seat height stays 420–440 mm from the ground and is not affected by step height |
| Independent rear mounting | Seats are fixed to the rear of the step with foot frames and brackets | For venues with high audience comfort requirements; strong anti-interference between individually installed seats |
Hardware Components
| Component | Specification |
|---|---|
| Seat feet | Aluminium alloy profile with Dacromet coating (superior corrosion protection). Coating thickness 4–8 μm, rust-proof effect 7–10 times |
| Seat fasteners | Q235 steel, hot-dip galvanized |
| Galvanized round tubes | Q235 steel, hot-dip galvanized, supplied with dedicated PVC end caps |
Manufacturing, Certification and Capacity
| Item | Detail |
|---|---|
| Experience in spectator seating | 12 years |
| Factory area | 14,000 m² |
| Production capacity | 2,000 seats per day (6 blow moulding machines + 2 air injection machines) |
| Design and R&D | About 12 engineers dedicated to design, research and development |
| Main production equipment | CNC shearing machine, bending machine, punching roll line, CNC punch machine, powder coating line, welding robots, injection and blow moulding machines |
| Management and product certificates | ISO 9001, ISO 14001, OHSAS 18001, CE, TUV, SGS and China Sports test certificates |
| Seat-level testing | SGS, ISO 4892-2 (accelerated weathering), BS 5852 (ignition resistance of upholstered seating) |
| Export markets | Products exported to more than 65 countries |
| Installation service | Our own installation teams track every stage – material arrival, equipment set-up, process coordination and final installation quality |
Frequently Asked Questions
What are the dimensions and material of the IKA seat?
The IKA seat measures W435 × D480 × H330 mm and is made of high-strength polypropylene (PP) by nitrogen-assisted gas injection moulding. Standard colours are red, blue, yellow and grey, and custom colours are available.
Which mounting method should we use on our stand?
It depends on your step geometry. Flat mounting fixes the seat to the front edge of the step and needs a step height of 350 mm or less. Wall mounting fixes it to the rear of the step and needs 300–550 mm. Vertical mounting keeps the seat 420–440 mm above the ground regardless of step height, and independent rear mounting gives the strongest anti-interference between individual seats for high-comfort venues.
Is the IKA seat FIFA compliant?
Yes. The IKA bucket seat is designed to meet FIFA guidelines and requirements for professional venues, and is used for both indoor and outdoor spectator facilities.
What happens to rainwater on the seat?
The seat shell uses a unique groove design that drains water quickly across the surface and prevents pooling, so the stand is usable again soon after rain.
Does the IKA seat save shipping space?
Yes. The special bucket design allows the seats to nest, which cuts transport volume compared with non-nesting seat shells.
Can we match our venue colours and print our logo on the seats?
Yes. Seat colours are produced with professional colour masterbatches, and an exclusive logo mould can be made for customised production. Because seats are colour-matched, large-scale logos or graphics can be formed across a stand to reinforce venue identity.
What warranty and service life do you offer?
The seat carries a 2-year warranty with an expected use life of 10 years, and is tested to SGS, ISO 4892-2 (accelerated weathering) and BS 5852 (ignition resistance of upholstered seating).
What is the minimum order quantity and the lead time?
The minimum order quantity for the IKA seat is 200 seats, and lead time is 15–30 days after order confirmation (depending on seat quantity, colour and whether number plates or a custom logo mould are required). Production capacity is 2,000 seats per day across 6 blow moulding machines and 2 air injection machines in our 14,000 m² factory. Send us the number of seats, the stand type (steel structure, fixed or retractable) and the row layout, and we will confirm quantities, mounting method and a delivery schedule.
