Foldable Stadium Seating with Easy Setup | ACE
Product Name | Foldable Stadium Seating |
| Size | W430 * D600 * H835 mm |
Material | HDPE |
Color | Red , blue , yellow , grey and customized |
Features | Anti - aging , Anti - UV , Fire proof |
| Application | Stadium , Arena , Sport field |
| Processing Technic | Blow molding |
| Warranty | 2 Years ( Use life : 10 years ) |
| Certificate | SGS , ISO 4892 - 2 , BS 5852 |

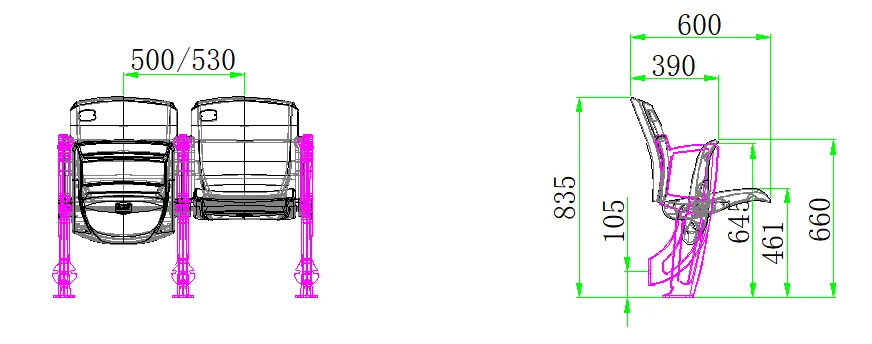

Product size: height 835 mm, seat width 430 mm, seat depth 600mm，c/c size 500 or 530mm
Places of use: stadiums, schools, multi-function halls, etc.
2.Main Materials and Composition of Foldable Stadium Seating
ACE Folding Seat – Specifications
| Attribute | Specification |
|---|---|
| Model | ACE folding seat |
| Seat size | W430 × D600 × H835 mm |
| Seat shell material | HDPE, blow moulded |
| Backrest and armrest | High backrest with integrated armrests |
| Seat surface | Wide seating surface; available with sofa cushions or a PU seat surface |
| Bracket | Full aluminium alloy bracket |
| Seat identification | Optional aluminium number plates |
| Seat angle brackets | 4 mm Q235 hot-rolled steel plate |
| Round tubes | φ14 mm solid round steel |
| Noise reduction | Top and bottom silent pads |
| Surface treatment | Sandblasting pre-treatment (GB/T 18839) followed by electrostatic powder coating (GB/T 19352), electrostatic spraying for a unified finish |
| Coating thickness | 60–80 μm, tested to GB/T 1764; smooth surface with no defects |
| Colours | Red, blue, yellow, grey and customised |
| Processing | Blow moulding |
| Warranty | 2 years (expected use life 10 years) |
| Certification | SGS, ISO 4892-2, BS 5852 |
Manufacturing, Certification and Capacity
| Item | Detail |
|---|---|
| Experience in spectator seating | 12 years |
| Factory area | 14,000 m² |
| Production capacity | 2,000 seats per day (6 blow moulding machines + 2 air injection machines) |
| Design and R&D | About 12 engineers dedicated to design, research and development |
| Main production equipment | CNC shearing machine, bending machine, punching roll line, CNC punch machine, powder coating line, welding robots, injection and blow moulding machines |
| Management and product certificates | ISO 9001, ISO 14001, OHSAS 18001, CE, TUV, SGS and China Sports test certificates |
| Seat-level testing | SGS, ISO 4892-2 (accelerated weathering), BS 5852 (ignition resistance of upholstered seating) |
| Export markets | Products exported to more than 65 countries |
| Installation service | Our own installation teams track every stage – material arrival, equipment set-up, process coordination and final installation quality |
Frequently Asked Questions
What is the minimum order quantity and the lead time?
The minimum order quantity for the ACE folding seat is 300 seats, and lead time is 15–30 days after order confirmation (depending on seat quantity, colour, upholstery choice and whether a custom logo mould is required). Production capacity is 2,000 seats per day in our 14,000 m² factory, so larger stand projects can be scheduled in phases.
What makes the ACE seat different from a fixed bucket seat?
ACE is a folding seat: it has a high backrest with integrated armrests and a wide seat surface, and the seat folds so rows can be cleared for circulation and cleaning. The bracket is made from full aluminium alloy, and the seat can be supplied with sofa cushions or a PU seat surface.
How is the steelwork protected against rust?
The angle brackets are 4 mm Q235 hot-rolled steel plate and the round tubes are φ14 mm solid round steel. They are sandblasted to GB/T 18839 and then receive electrostatic powder coating to GB/T 19352 with a coating thickness of 60–80 μm, verified to GB/T 1764.
Is the folding action noisy?
No. Top and bottom silent pads are fitted to the mechanism specifically for noise reduction, which is why ACE is used in indoor arenas and halls as well as outdoor stadiums.
Can seats be numbered individually?
Yes. Optional aluminium number plates can be fitted for clear seat identification, typically requested for ticketed stands and media positions.
What warranty and service life do you offer?
The seat carries a 2-year warranty with an expected use life of 10 years, and is tested to SGS, ISO 4892-2 (accelerated weathering) and BS 5852 (ignition resistance of upholstered seating).
Can we match our venue colours and add our logo?
Yes. Seat colours are produced with professional colour masterbatches and custom colours are available. An exclusive logo mould can be produced for customised branding, and colour-matched seats can be arranged to form large-scale logos or graphics across a stand.
